Heavy Duty Drawer Slides 8 Inch, Full Extension Drawer Slides, Ball Bearing Cabinet Drawers Slide, 1 Pair
- Heavy Duty - The ball bearing slider is made of high-quality cold-rolled steel material to provide stable support. It is ideal for heavy duty use and can hold up to 70 pounds. In addition, black electrophoresis layer on the surface to stay rust-proof, abrasion-proof for long-term service.
- Smooth & Quiet - Drawer hardware slides are equipped with doble row of ball-bearing action and the buffer design, which aim to make less noise and friction at closing and open the drawer.
- Full Extension Design - The size of the drawer railing is 8 x 1.77 x 0.5 inches (L x W x H), and its extended length is approximate twice the closed size.
- Installation & Usage - The heavy-duty drawer slides can be installed on the side of the cabinet or other equipment. All included screws are easy and quick to install.
- Choose the Right Size - 1. Make sure that the gap between the drawer and side plate (each side) is 0.5"(13mm), neither too wide nor too narrow, because inappropriate install distance would let the ball bearing out or out of shape. 2. Measure the minimum cabinet depth is 0.16"(4mm) longer than the slide length.
Product Description
Laigoo Heavy Duty Drawer Slides Ball Bearing, Side Mount, 3-Fold Full Extension, Black, 1Pair
High Quality Plat
High - tension cold-rolled steel plates, sturdy and durable.

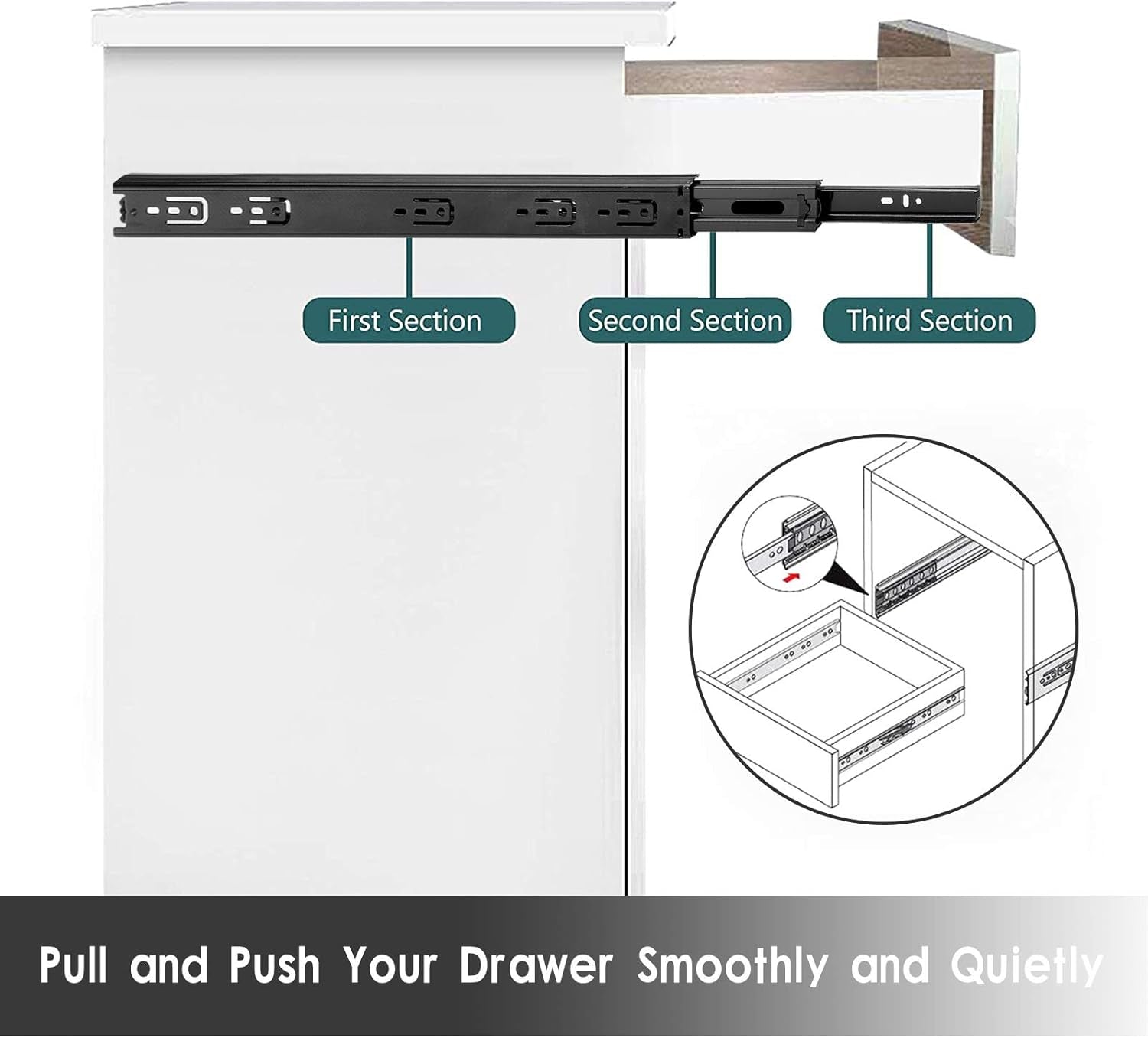

3-Fold Slides
Enable the slides to fully extend
Solid Ball Bearing
Provides smooth and friction-free motion when open drawer
Separable
The third slides can be separated. Easy for installing.
Installation Steps:
- Install the outer fixing rails on both sides horizontally and fix them with screws.
- When removing the drawer, press and hold the disassembly buckle to break away from the inner fixed rail.
- Install the inner fixed rails on both sides of the drawer, align the middle fixed rails, and slide them in parallel.
Installation Space:
The space between drawer and cabinet wall need to be 1" (0.5" for each site)
How to Choose Proper Size?
Measure the depth of the drawer ( for example, if the depth is 13in/330mm, choose 12in/300mm drawer slides. Deviations of 0.7in/20mm-1in/30mm are suitable)
